Lenovo ThinkSmart Core Video Conferencing Kit for Microsoft Team Rooms 11S30008SA

Lenovo ThinkSmart Core Video Conferencing Kit for Microsoft Team Room

Technical Specifications:

Processor: Intel® Core™ i5-1145G7E (4C / 8T, 1.5 / 4.1GHz, 8MB)

Graphics: Integrated Intel® Iris® Xe Graphics

Chipset: Intel® SoC Platform

Memory: 1x 8GB Soldered DDR4-3200

Memory Slots: Memory soldered to systemboard, no slots, dual-channel

Max Memory: 16GB soldered memory, not upgradable

Storage: 256GB SSD M.2 2280 PCIe® 3.0x4 NVMe®

Storage Support: One drive, up to 256GB SSD

Power Supply: 90W 89% Adapter

Case Color: Black (ThinkSmart™ Core™ + ThinkSmart Controller Full Room Kit)

Mounting: Integrated VESA Mount

Controller: ThinkSmart™ Controller, 10.1" Display, 10-point Multi-touch

Camera Component: ThinkSmart™ Cam

Microphone Component: 4x Mic on ThinkSmart™ Bar + 2x Satellite Mic

Audio Bar: ThinkSmart™ Bar (4 Speakers)

Ethernet: Integrated 100/1000M

WLAN + Bluetooth: Intel® Wi-Fi® 6 AX201, 11ax 2x2 + BT5.0, vPro®

System Management: Intel® vPro®

Operating System: Windows® 10 IoT Enterprise for Collaboration SAC 64, English

Bundled Software: Microsoft® Teams Rooms

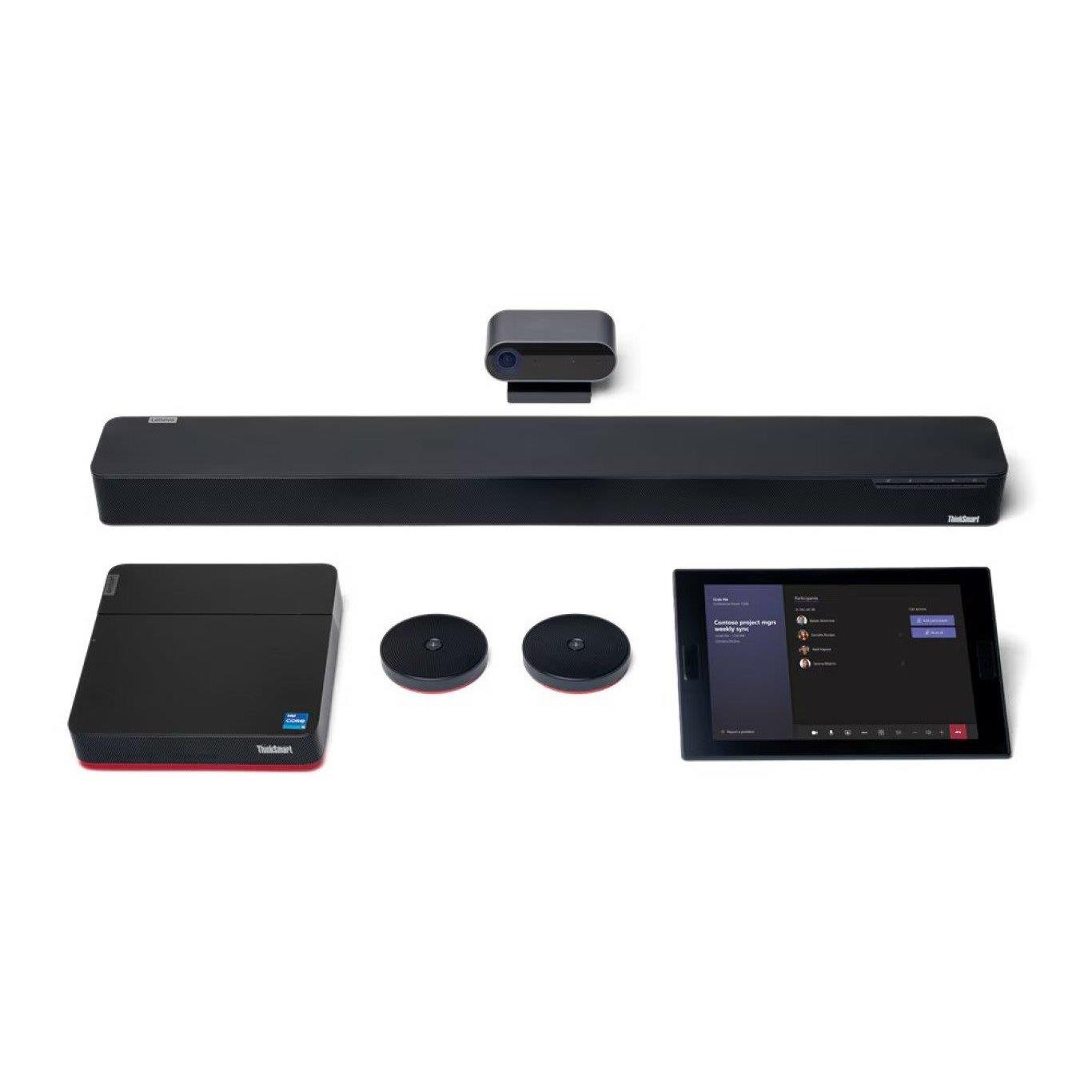

Component Options

• ThinkSmart Core Full Room Kit (ThinkSmart Controller)
• 1x ThinkSmart Core
• 1x ThinkSmart Controller
• 1x ThinkSmart Bar
• 2x Satellite Microphone
• 1x ThinkSmart Cam

Dimensions (WxDxH)

• ThinkSmart Cam: 105 x 60.5 x 36 mm
• ThinkSmart Core: 226 x 200 x 37.5 mm
• ThinkSmart controller: 265.5 x 13 x 168.1 mm
• ThinkSmart controller with stand: 265.5 x 83.3 x 168.1 mm
• ThinkSmart Bar: 800 x 90 x 55 mm
• Satellite Microphone: 100mm x 20 mm

Weight

• ThinkSmart Core: 1.1 kg
• Satellite Microphone: 220 g
• ThinkSmart Cam: 220 g
• ThinkSmart Bar: 1.9 kg
• ThinkSmart controller: 753.8 g

Rear Ports

• 1x Thunderbolt™ 4
• 1x USB-C® 3.2 Gen 1
• 1x USB-C® 3.2 Gen 2
• 1x USB 3.2 Gen 1
• 2x USB 3.2 Gen 2
• 1x HDMI®-in
• 2x HDMI®-out 1.4
• 1x Ethernet (RJ-45)
• 1x power connector

Features

The Lenovo ThinkSmart Core Video Conferencing Kit for Microsoft Teams Rooms is a comprehensive solution designed to enhance the video conferencing experience in professional settings. It integrates seamlessly with Microsoft Teams Rooms to provide a reliable and efficient communication platform.

Sleek and Professional Design

Modern and professional aesthetic that fits well into any conference room setting.

Durable Construction

Built with high-quality materials to ensure durability and long-term reliability.

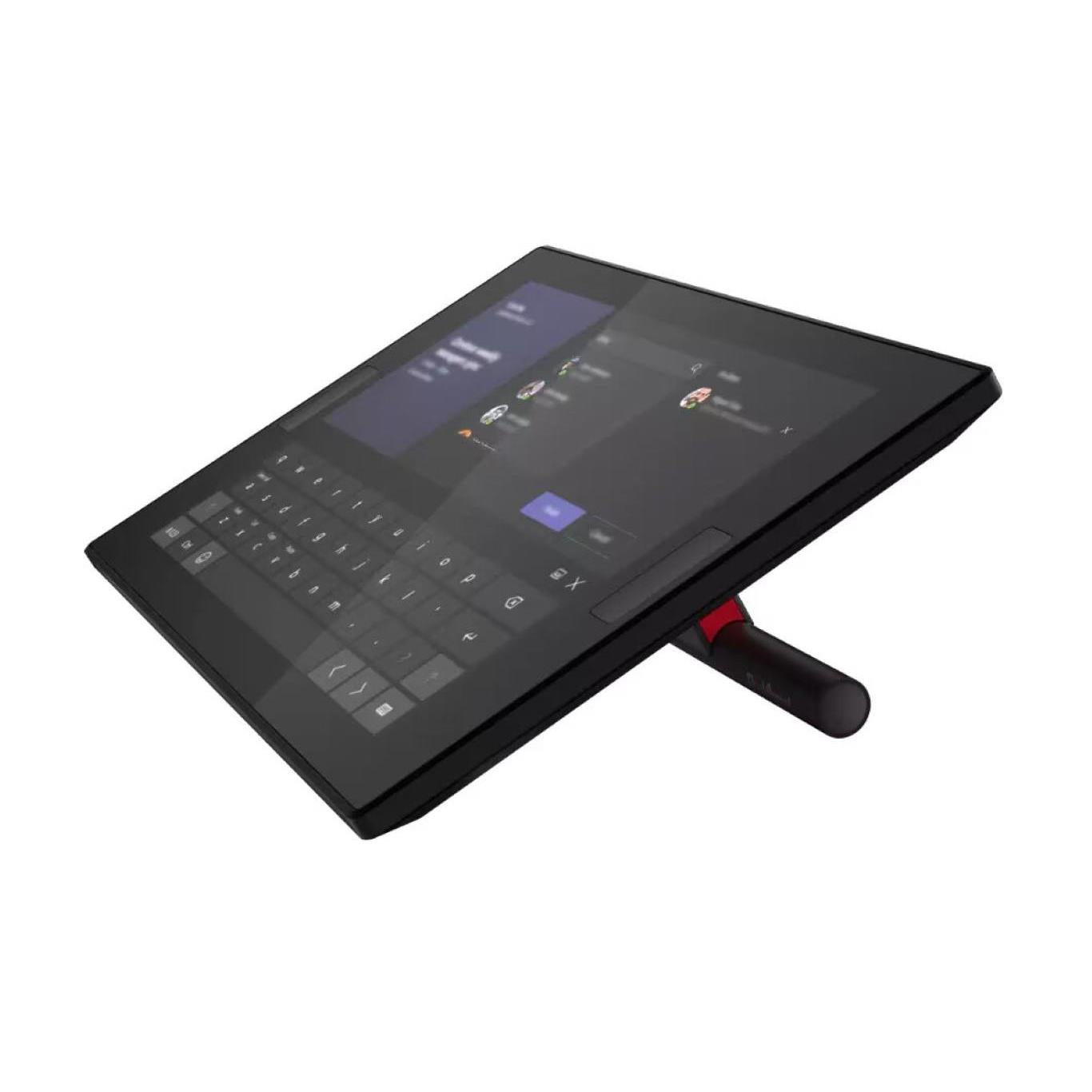

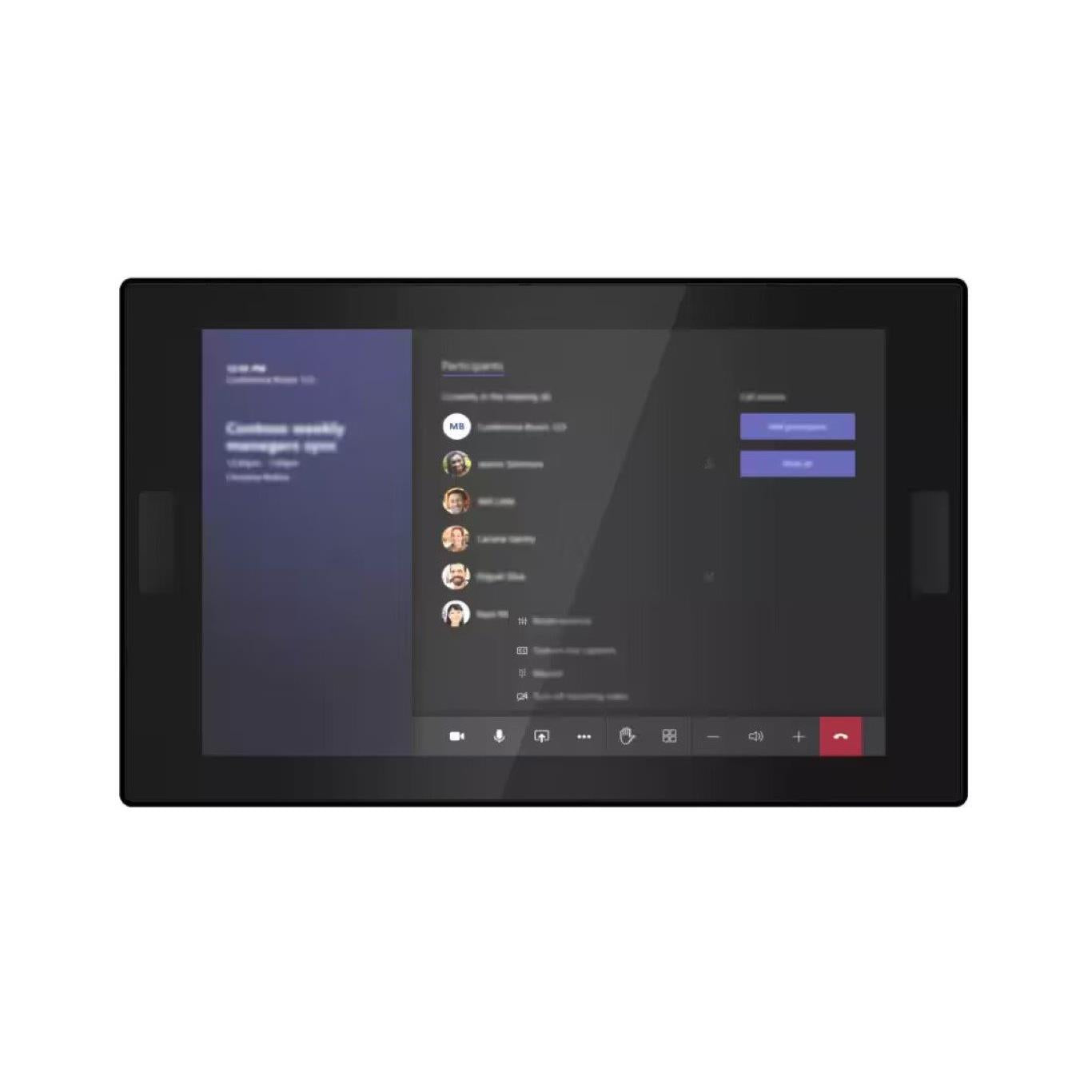

ThinkSmart Controller

A touch-enabled device that provides intuitive control over meeting functions, such as starting meetings, adjusting settings, and more.

ThinkSmart Core Full Room Kit

• 10.1" Display, HD (1280x800)
• Up to 340 nits brightness
• 16:10 aspect ratio
• Anti-Fingerprint, Anti-Glare
• 30° or 60° rotatable
• IR sensors for motion detection, up to 3 meters distance and 90° angle10-point touch
• 1x USB-C® (connect to compute unit, 10m USB-C® cable incluided)
• 1x 3.5mm headphone / mic combo jack
• 1x Kensington® Mini
• Saver Security Slot

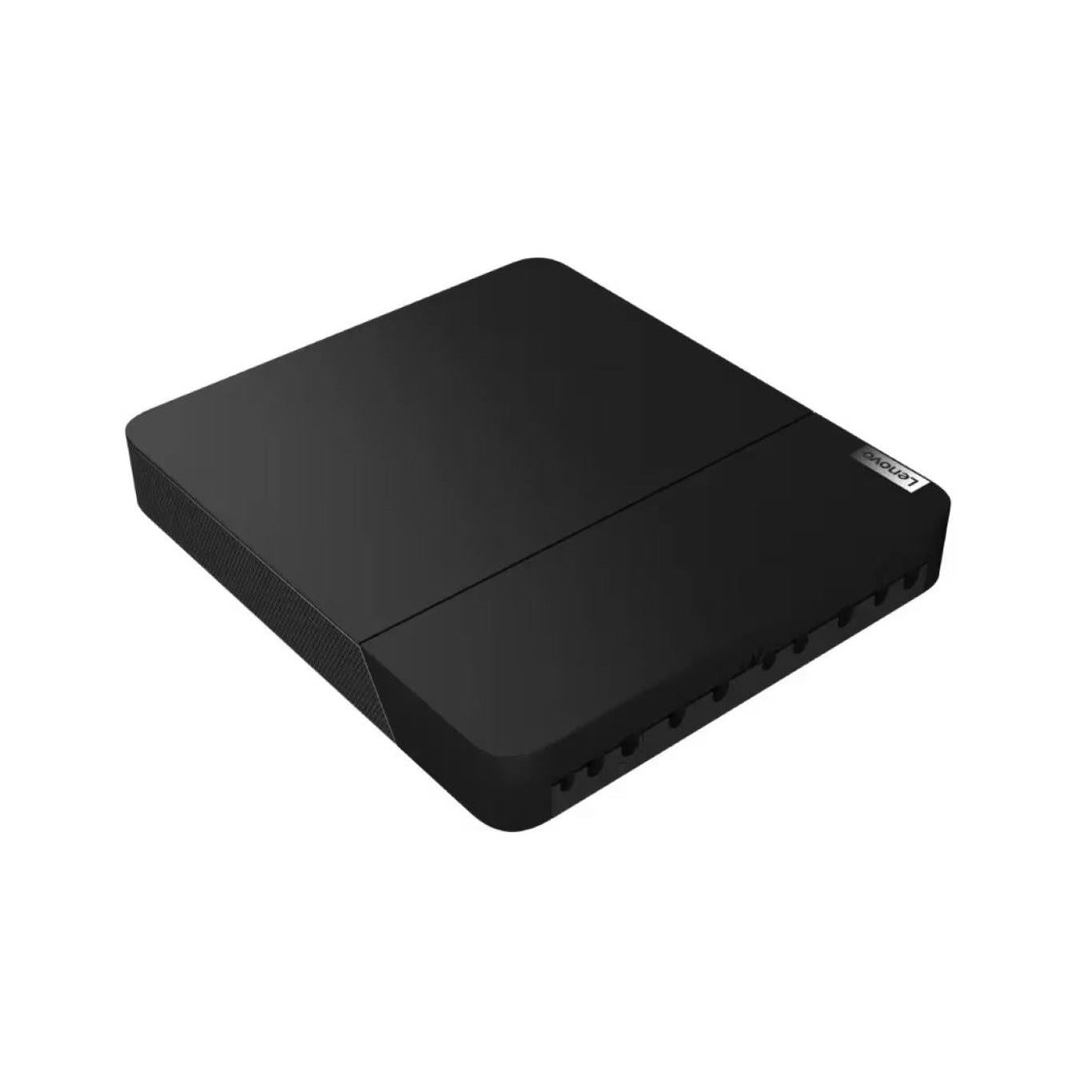

ThinkSmart Core

The central computing unit that powers the conferencing system, ensuring reliable performance and handling all processing tasks.

ThinkSmart™ Bar

• 4x Speaker units, with power output 20+20W
• Up to 97dB to cover large meeting room
• 250 Hz to 20 KHz frequency range
• 4x Forming mic array, with 180° coverage
• 300 Hz to 8 KHz frequency range-Built-in DSP for echo and noise-cancellation
• 1x USB-C® (USB 2.0, connect to ThinkSmart™ Core™ compute unit)
• 1x AUX in (connect to Mic Pod)
• Bluetooth® 5.0 (A2DP, SBC, MPEG-4, AAC)
• (Optional) Wall and TV mounting

2x Satellite Microphone

• 1m 360 degree omni direction
• 1x Mic out (connect to ThinkSmart™ Bar)
• 1x Mic in (connect to next Mic Pod)

ThinkSmart Cam

• Up to 4K at 30fps resolutions (USB 3.2 Gen 1 Cable)
• 100° Horizontal FoV
• 68° Vertical FoV
• 125° Diagonal FoV1x USB-C® (connect to ThinkSmart™ Core™ compute unit)
• Standalone (tabletop), (Optional) Wall and TV mounting
• Image output format:MPEG, H.264, YUV
• UVC (USB Video Class) 1.1 plug-and-play support
• AI conference meeting function: auto zoom, auto framing, people counting, speaker tracking, whiteboard awareness
• HDR (High Dynamic Range) support
