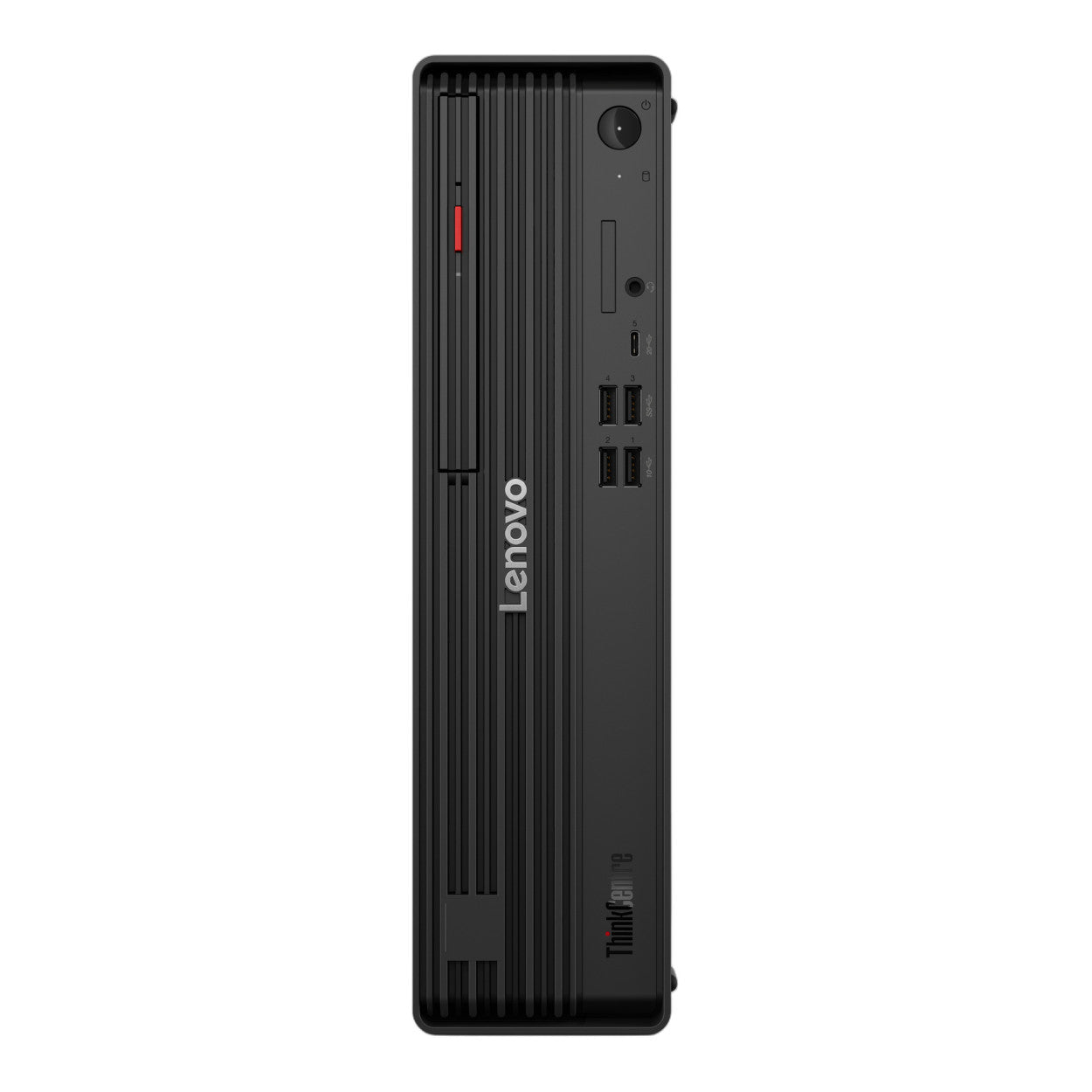

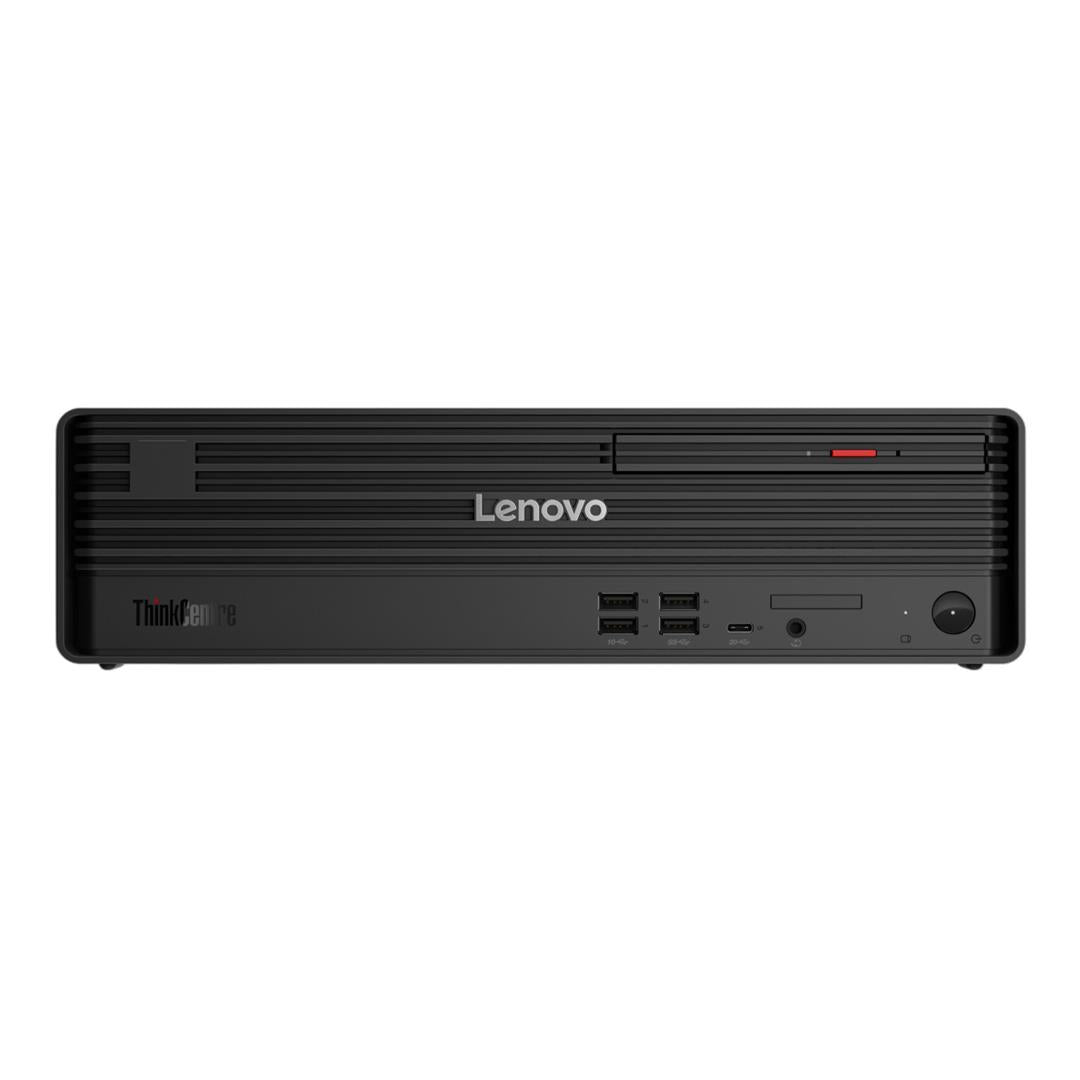

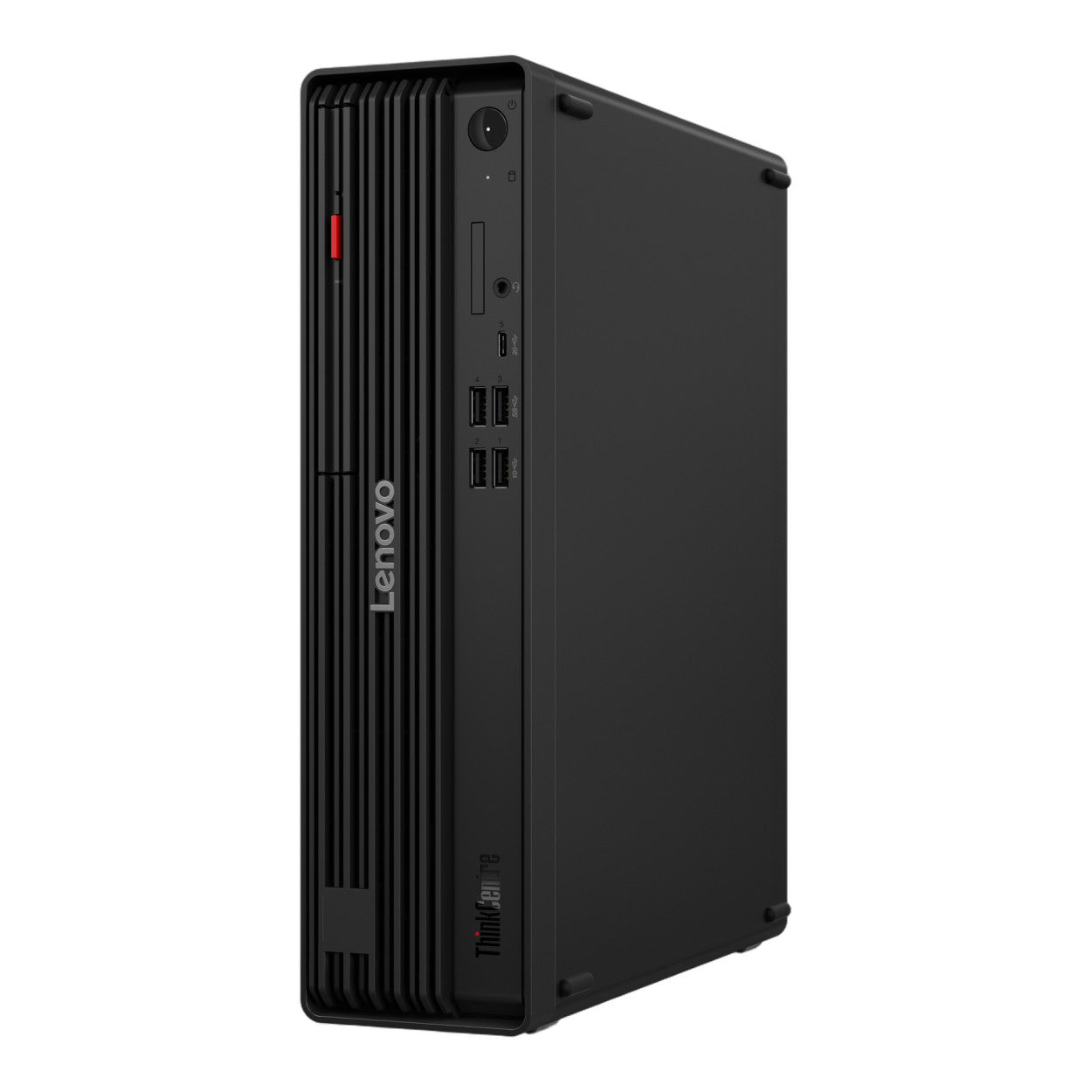

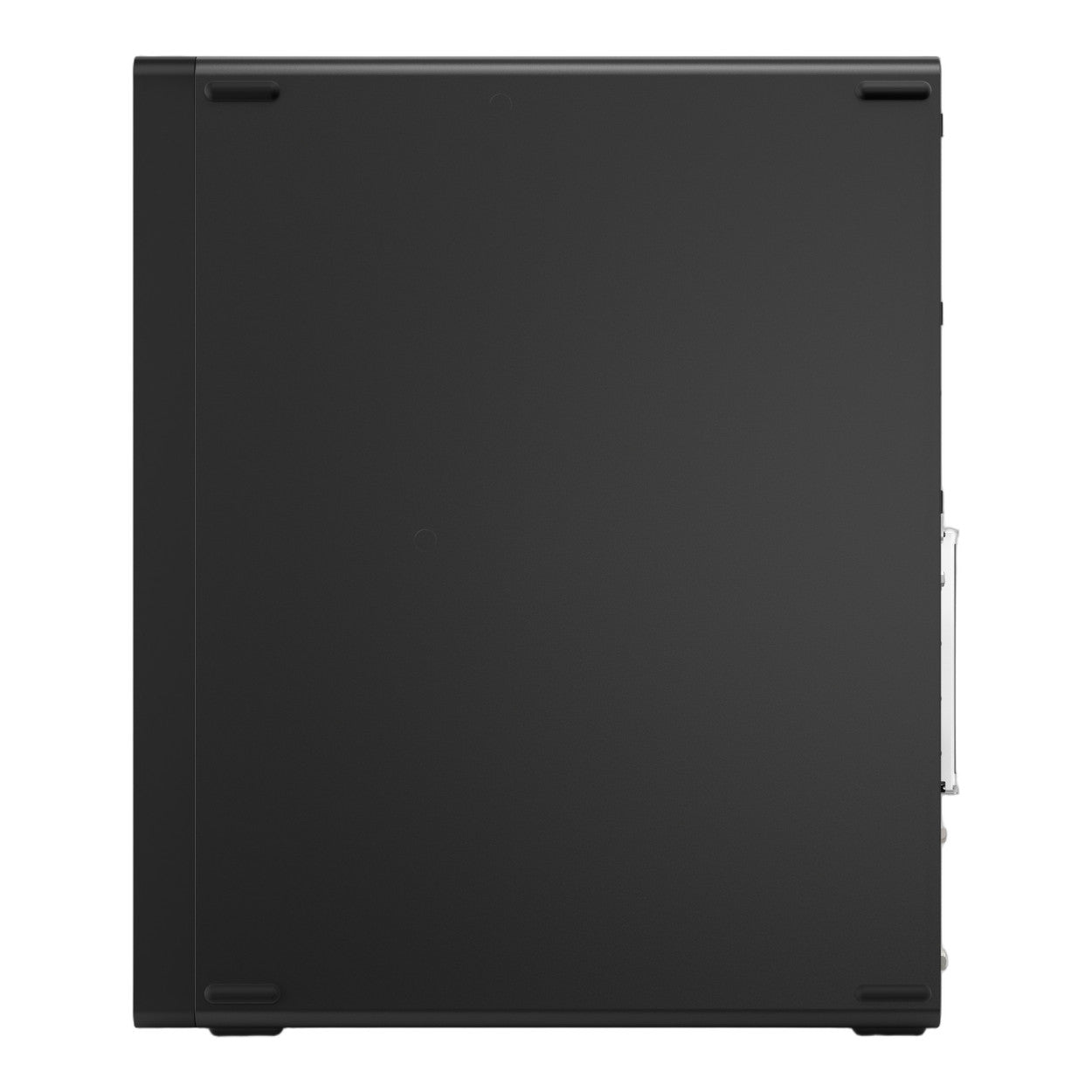

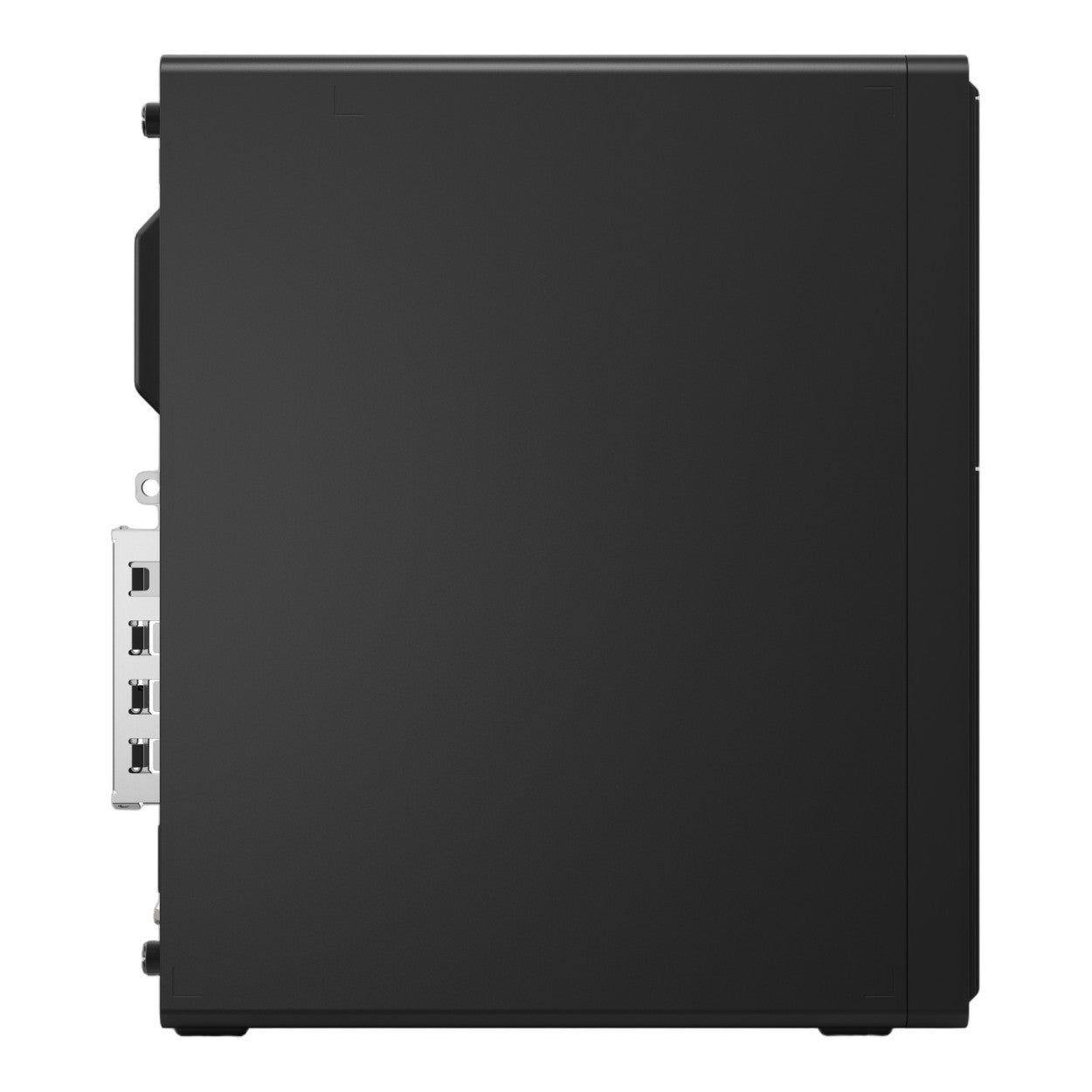

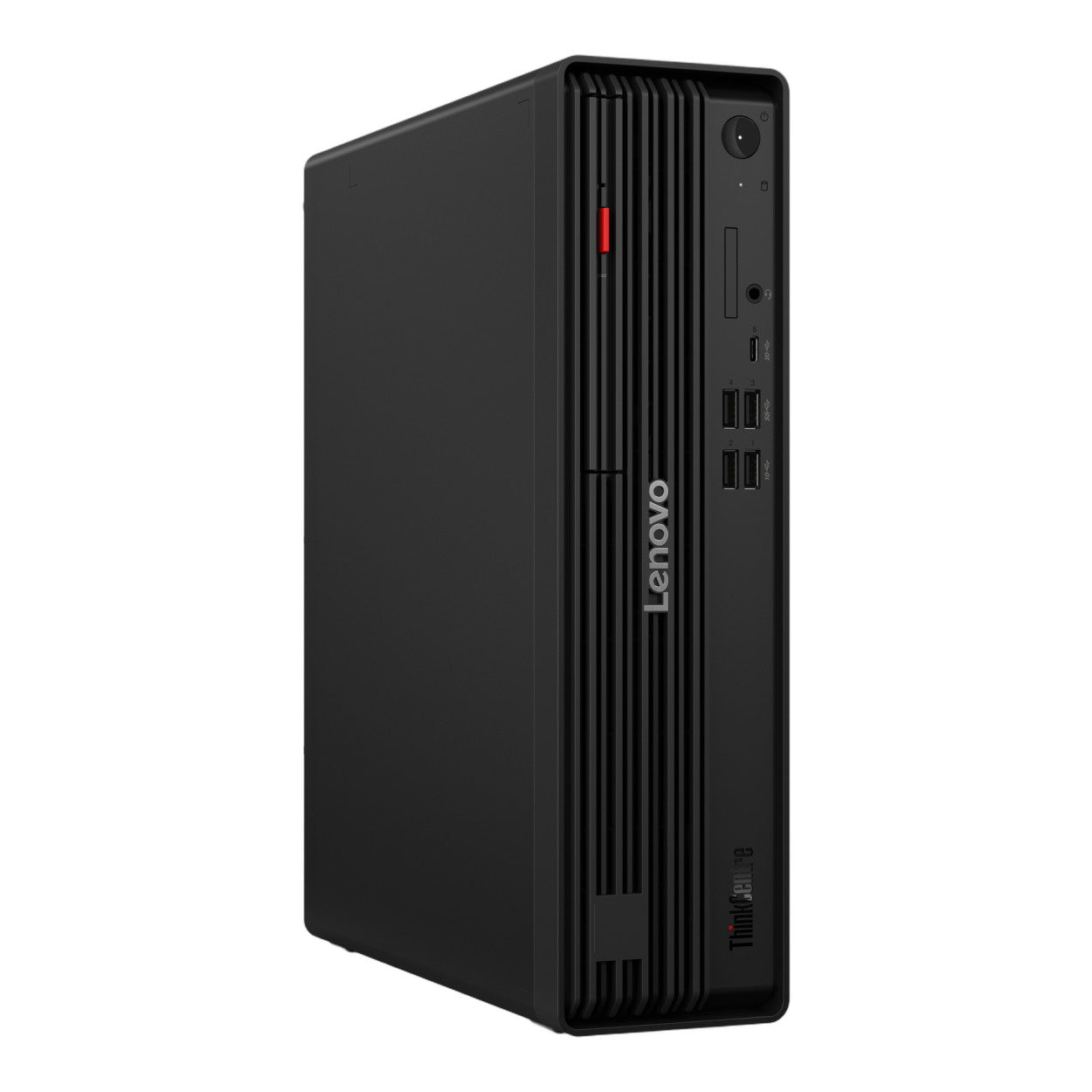

Lenovo ThinkCentre M70s G6 SFF Intel Core Ultra 7 265 16GB RAM 512GB SSD Win 11 Pro Desktop AI PC
Choose options
Technical Specifications
| Specification | Details |
|---|---|
| Product | Lenovo ThinkCentre M70s Gen 6 AI PC |
| Product Type | Desktop PC |
| Form Factor | SFF (8.2 L) |
| Processor Family | Series 2 Intel Core Ultra 7 |
| Processor Model | 265 |
| Processor Frequency | 1.8 GHz / Up to 5.3 GHz (30 MB Cache, 20 Cores) |
| vPro Security | Intel vPro Enterprise |
| NPU | Intel AI Boost, up to 13 TOPS |
| Internal Memory | 16 GB 5600 MHz (1 x 16 GB) |
| Internal Memory Type | DDR5-SDRAM |
| Memory Slots | Four DDR5 UDIMM slots, dual-channel capable (Upgradable) |
| Max Memory | 128 GB |
| Total Storage Capacity | 512 GB M.2 2280 PCIe 4.0x4 NVMe Opal 2.0 |
| Storage Media | SSD |
| Storage Slot | M.2 2280 PCIe 4.0x4 NVMe Opal 2.0 |
| Max Storage Support | Up to four drives, 1 × 3.5" HDD + 1 × 2.5" HDD + 2 × M.2 SSD; 3.5" HDD up to 2 TB; M.2 SSD up to 2 TB each |
| Expansion Slots | 1 × PCIe 4.0 x16, low-profile, length ≤ 155 mm, height ≤ 70 mm 2 × PCIe 3.0 x1, low-profile, length ≤ 155 mm, height ≤ 70 mm 3 × M.2 slots (one for WLAN, two for SSD) |
| Optional Bay | 2nd M.2 Bracket + 2.5" HDD Bracket |
| On-board Graphics Card Model | Intel Graphics |
| Discrete Graphics Card Model | Not Included, Optional |
| Keyboard | USB Traditional Keyboard, Black, English (EU) |
| Mouse | USB Calliope Mouse, Black |
| Connectivity | Intel Wi-Fi 6E AX211 (802.11ax 2×2), Bluetooth 5.3 |
| Security Chip | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Physical Lock | Smart Cable Clip, Kensington Security Slot (3 × 7 mm), Padlock Loop |
| Operating System Installed | Windows 11 Pro (English) |
| Mounting | None |
| Adapter Cage | None |
| IO Box | None |
| Toolless Chassis Screw | None |
| Stand | None |
| Speakers | 1 × 1 W |
| Card Reader | Not Included |
| Optical Drive | Not Included |
| Power Supply | 260 W (90% Efficiency) |
| Product Colour | Black |
| Weight | 5.1 kg |
| Base Warranty | 1-year, Onsite |
| Included Upgrade | 3-year Onsite upgrade from 1-year Onsite |
| Front Ports | 1 × USB-C 3.2 Gen 1 (5 Gbps, 15 W Charging) 2 × USB-A 3.2 Gen 1 (5 Gbps) 2 × USB-A 3.2 Gen 2 (10 Gbps) 1 × Headphone / Microphone Combo Jack (3.5 mm) |
| Rear Ports | 4 × USB-A 3.2 Gen 1 (5 Gbps), one supports Smart Power On and USB Always On 1 × HDMI 2.1 TMDS 2 × DisplayPort 1.4a (HBR3, DSC) 1 × RJ-45 Ethernet 1 × Line-out (3.5 mm) |
Key Features
- A small form factor (SFF) AI PC with commercial-grade reliability that delivers smooth performance & promotes high productivity.
- Enterprise-grade performance, security & manageability with Intel vPro
- Industry-leading GPUs & powerful AI performance to handle demanding workloads
- Versatile & adaptable SFF with multiple ports & expandable storage options for multitasking
Features
Drives Business Performance & Productivity
Powered by Intel® Core™ Ultra processors, the ThinkCentre M70s Gen 6 small form factor (SFF) PC is ideal for running complex software, multitasking with multiple applications, or streaming high-definition content. Optional Intel vPro® technology enhances security and manageability that IT professionals will love.
AI Support for Efficient Workflow
Lenovo AI Now is an AI assistant enhancing productivity and creativity, delivering personalized experiences. It leverages AI features like knowledge management, document summarization, and device control, prioritizing data privacy, and security.
Effortless Multitasking, Exceptional Graphics
Power your creativity with graphics choices. Go with the optional NVIDIA® GeForce RTX® GPU for high-quality visual computing for video/graphic tasks, streamlined multitasking, and balanced performance. Or choose Intel® Arc for encoding, decoding, and transcoding tasks.
Experience High-Speed Performance & Security
With flexible RAID configurations, the M70s Gen 6 PC offers the best of both worlds — RAID 0 boosts data access speeds for intensive tasks like video editing, while RAID 1 ensures full data redundancy, securing files in case of drive failure.
Seamlessly Connect to External Monitors
Take multitasking to the next level with triple display capability — 2 display ports and 1 HDMI® port. Experience brilliant visual clarity — spread out your projects, track multiple activities, and boost efficiency with a setup that keeps everything in view and at your fingertips.
Stream, Charge & Connect With Ease
Maximize connectivity with the ThinkCentre M70s Gen 6 SFF PC’s four rear USB ports, delivering high-speed data transfers, seamless video streaming, and efficient device charging. Connect multiple peripherals while keeping your workspace organized.
Security Like Your Business Depends On It
Choose the optional Intel vPro® platform for multilayer security to block cyberattacks and ransomware. Enjoy maximum security with ThinkShield — including Trusted Platform Module (TPM) for hardware solutions and self-healing BIOS to restore earlier system settings. Secure your PC physically with the padlock loop, optional chassis e-lock, and more.
- Specifications and Images may vary depending upon region / model.
