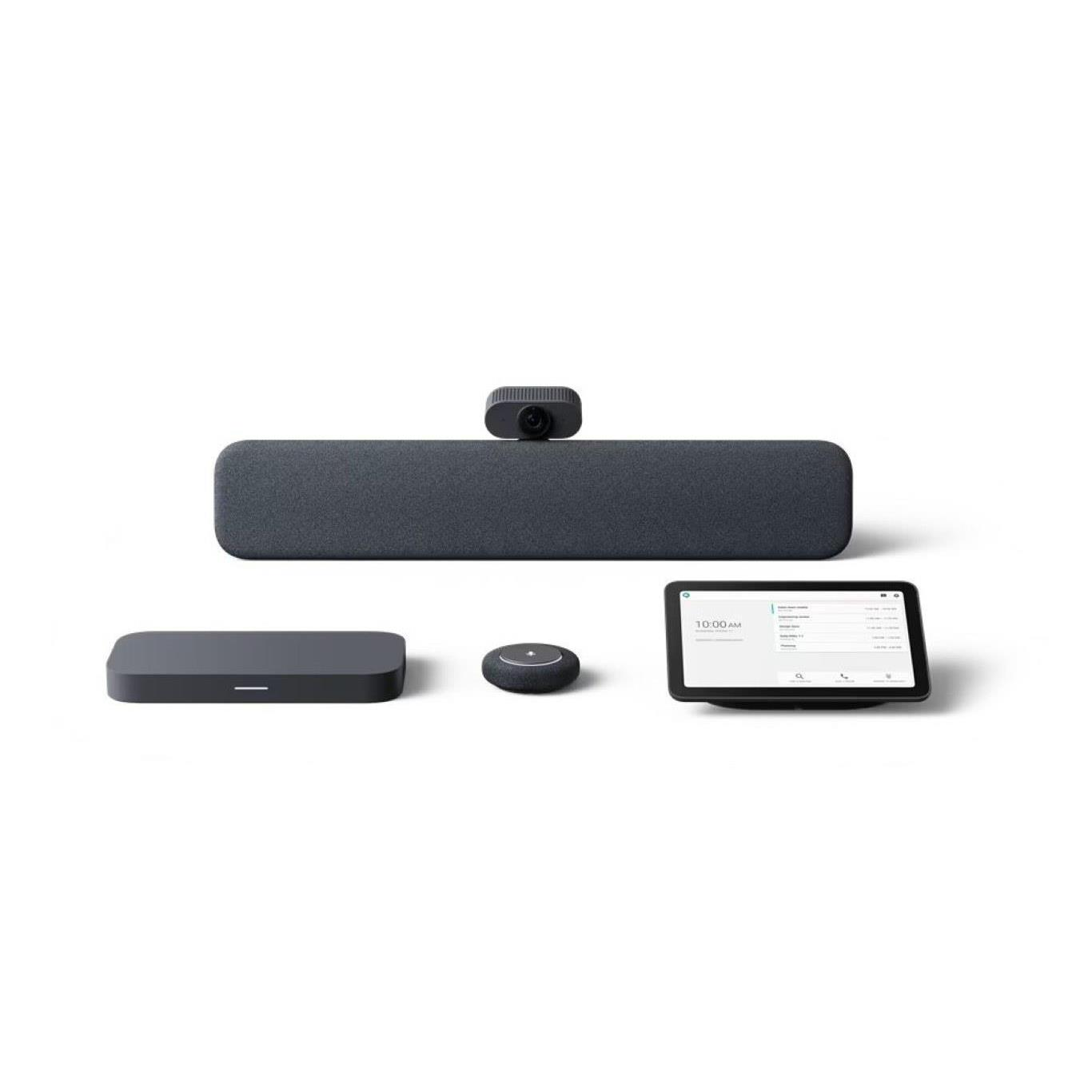

Lenovo Gen2 Google Meet Series One Room Medium Video Conferencing Kit 20YW0007ZA

Lenovo Gen2 Google Meet Series One Room Medium Video Conferencing Kit

Technical Specifications:

Processor: Intel® Core™ i7-10510U (4C / 8T, 1.8 / 4.9GHz, 8MB)

Graphics: Integrated Intel® UHD Graphics

Chipset: Intel® SoC Platform

Memory: 1x 8GB SO-DIMM DDR4-3200

Max Memory: 8GB soldered memory, not upgradable

Storage: 128GB SSD M.2 2280 SATA6Gb/s

Storage Support: One drive, 128GB M.2 2280 SSD / SATA interface

Power Supply: 240W Adapter

Case Color: Charcoal (Medium Kit)

Controller: 10.1" Touch Controller, 2-point Multi-touch, Charcoal

Camera Component: Smart Camera, Black

Microphone Component: 1x Mic Pod, Charcoal

Audio Bar: 1x Smart Audio Bar, Charcoal

Ethernet: Integrated 100/1000M

WLAN + Bluetooth: Intel® Wi-Fi® 6 AX201, 11ax 2x2 + BT5.0

Operating System: ChromeOS

Component Options

• Medium Room Kit
• 1x Compute System
• 1x Touch Controller
• 1x Smart Audio Bar
• 1x Mic Pod
• 1x Smart Camera

Dimensions (WxDxH)

• Smart Camera: 107 x 84 x 42 mm
• Touch Controller: 245 x 164 x 91 mm
• Compute System: 284 x 135 x 29 mm
• Smart Audio Bar: 705 x 95 x 133 mm
• Mic Pod: 95 x 95 x 30 mm

Weight

• Mic Pod: 215 g
• Smart Audio Bar: 3.3 kg
• Smart Camera: 321 g
• Compute System: 985 g
• Touch Controller with plate: 990 g

Rear Ports

• 1x USB-C® 3.2 Gen 1
• 3x USB 3.2 Gen 1
• 1x HDMI®-in 1.4b
• 2x HDMI®-out 1.4b with CEC
• 1x headphone / microphone combo jack (3.5mm)
• 1x power connector
• 5x RJ-45 Ethernet (one uplink port for internet connection, four downlink ports for IP-based peripherals)

Features

The Lenovo Gen2 Google Meet Series One Room Medium Video Conferencing Kit is designed to provide an enhanced video conferencing experience for medium-sized meeting rooms. This kit integrates seamlessly with Google Meet, offering high-quality audio and video, user-friendly controls, and advanced features to ensure productive and efficient meetings.

Optimized for Google Meet

Seamless Integration

Specifically designed for Google Meet, providing a smooth and cohesive user experience.

One-Touch Meeting Start

Allows users to start or join Google Meet sessions with a single touch, simplifying the meeting process.

High-Quality Video and Audio

HD Video

Ensures clear, sharp video quality, making meetings more effective.

Superior Audio Quality

Features advanced audio technology to provide clear and uninterrupted sound, ensuring effective communication.

Components

Meet Compute System

The central unit that powers the conferencing system, providing reliable performance and handling all processing tasks.

Smart Camera

An intelligent camera that automatically adjusts framing and zooms to keep participants in focus, ensuring everyone is seen clearly.

• Up to 1080p@30fps video capture, f/2.8 aperture
• 12 MP 1/2.3" CMOS sensor
• Ultra-wide angle glass optics
• 120Ëš horizontal field of view
• Omnidirectional microphone
• 1x RJ-45 Ethernet (PoE, connect to Compute System)

Smart Audio Bar

Combines high-quality microphones and speakers into a single unit, offering excellent audio input and output.

• 20W RMS power, 80Hz-24kHz frequency response
• 8 element, linear beamforming array
• 100Hz-24kHz pickup, optimal pickup range of up to 4mAEC, ANC, and TrueVoice™ multi-channel noise cancellation (via onboard Google Edge TPUs)
• 1x USB-C® with USB 2.0 UAC (only for audio out)
• 1x stereo analog RCA output (for assistive listening devices)
• 1x RJ-45 Ethernet (PoE, connect to Compute System)
• 2x RJ-45 Daisy Chain Ports (PoE like, connect to Add-on Audio Bar and Mic Pod)
• Wall mount kit

Touch Controller

A touchscreen device that provides intuitive control over meeting functions, such as starting meetings, adjusting settings, and managing participants.

• 10.1" Display, wide viewing angle (Horizontal/Vertical: +/- 89°)
• 350 nits brightness
• 16:10 aspect ratio, 800:1 contrast ratio
• smudge resistant
• Color sensor
• Orientation sensor
• 2-point touch
• 1x RJ45 Ethernet (PoE, connect to Compute System)
• Wall mount kit

Mic Pod

• 100Hz-24kHz pickup
• Optimal pickup range of up to 2m
• 2x RJ-45 Daisy Chain ports (PoE like, one input connects to Smart Audio Bar or previous Mic Pod, one output port connects to next Mic Pod)
• 8 element, circular beamforming array
